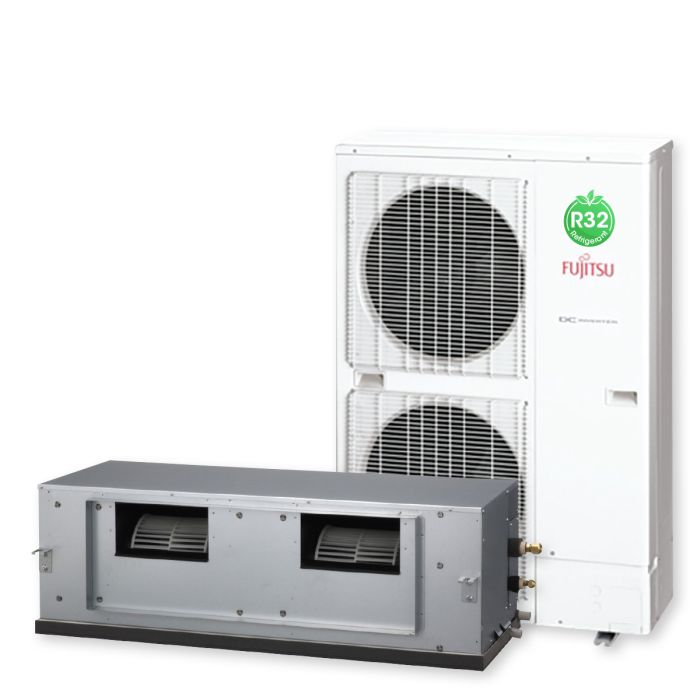

20.3kW 3-Phase R32 Fujitsu High Static Ducted Reverse Cycle Air Conditioner
Fujitsu ducted reverse cycle high static air conditioner with R32 refrigerant, three phase power and 20.3kW output.
You may also need
Description
Fujitsu High Static Three Phase
The High Static Three Phase R32 ducted air conditioner range is available in four models, ranging in capacity from 10kW to 15.5kW. All models have a maximum guaranteed ambient operating temperature range of up to 50 degrees in cooling mode, have demand response, and are zone system compatible for effective home air conditioning in larger houses.
Features
 |
 |
| Allows introduction of fresh air to the occupied space. |
With All DC, electricity loss is decreased, and power consumption reduced. |
 |
 |
| Corrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchanger. | Should there be a temporary loss of power, the unit will automatically restart itself in the same operating mode once the power is restored. |
 |
 |
| The auto shut louvres close or open automatically when the unit stops or starts. | Systems are capable of attaching a field-supplied branch ducts distributing the airflow. |
Why Choose Fujitsu?
 |
Voted Australia's Most Trusted Air Conditioning Brand (2018-2022)
 |
A 5-year parts and labour warranty across the entire domestic range.
 |
A percentage of sales from Fujitsu air conditioning units goes to Sporting Chance.
Specifications
| Rated Capacity - Cool | 20.30 |
| Rated Capacity - Heat | 22.60 |
| Energy Stars (Cool) | 2.0 / 1.5 / 1.5 |
| Energy Stars (Heat) | 2.0 / 1.5 / 1.5 |
| EER (Cool) | 3.25 |
| Power Supply (V/Hz) | 400 / 3 / 50 |
| Weight - Indoor (kg) | 100.00 |
| Weight - Outdoor (kg) | 215.00 |
| Capacity Range - Cool (kW) | 10.8~23.5 |
| Capacity Range - Heat (kW) | 12.0~26.5 |
| EER/COP (Cool/Heat) | 3.25 / 3.60 |
| Indoor Dimension (W x D x H) [mm] | 1587 x 700 x 450 |
| Outdoor Dimension (W x D x H) [mm] | 930 x 765 x 1690 |
| Weight (Indoor Net/Gross) [kg] | 100.00 |
| Sound Power Level - Indoor (dB/A) | 47 / 41 |
| Sound Power Level - Outdoor (dB/A) | 80 |
| Refrigerant Type | R410A |
