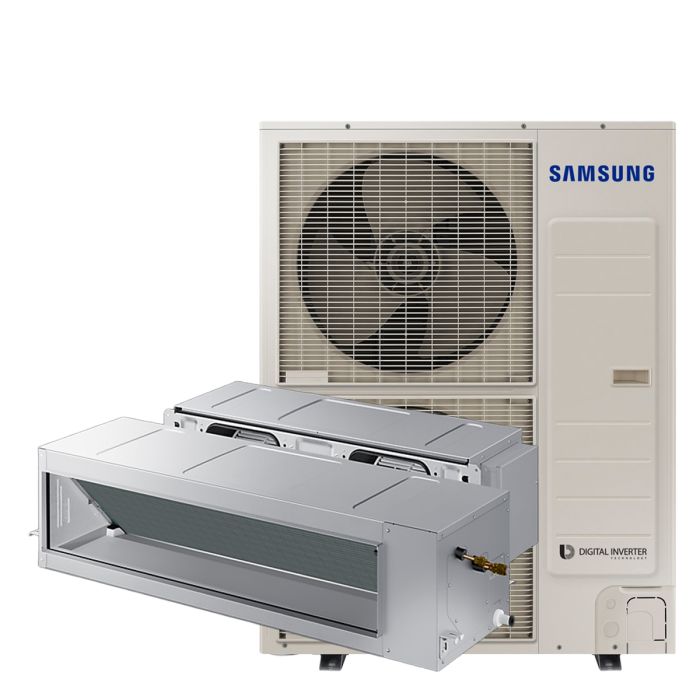

20.0kW 3-Phase R32 Samsung Ducted Reverse Cycle Air Conditioner
3 Phase Samsung Ducted Air Conditioner with 20.0kW output capacity and R410A refrigerant.
You may also need
Description
Samsung Ducted Air Conditioners are designed to keep on working, even on those extremely hot or cold days.
Samsung Premium Duct S2
 |
| R32 Refrigerant |
 |
| Made for Australia |
 |
| Powerful & Fast |
 |
| Robust |
Made to fit in more places – perfect for renovations
A splittable type indoor unit can separate the fan and heat exchanger section, making it easier to position into tight roof space – perfect for renovations. Combined with hanging brackets positioned to minimise obstruction, installation has never been this easy.
Works great with AirTouch
| For ultimate control of individual room’s airflow from a beautiful touchscreen console, app, or smart assistant, specify AirTouch with your Samsung Ducted Air Conditioner. |
 |
Powerful Airflow
 |
Samsung Duct S2 indoor units contain up to 3 fans1 and are designed to handle duct lengths with static pressures of up to 200pa2; to provide powerful airflow in your home.
Eliminates viruses for healthier air
With Virus Doctor the Samsung DUCT S2 Air Conditioner protects against airborne diseases. It uses S-Plasma ion technology to eliminate 99% of contaminants, bacteria and viruses in the air, including the Influenza A and Corona viruses. It has also been approved by the British Allergy Foundation (BAF) for its effectiveness in eliminating allergens. So it keeps the air you breathe clean and healthy.
 |
Quiet, High Performance by Twin BLDC Compressor
| A key contributor to Samsung Ducted systems efficiency is its advanced compressor technology Adopting Twin Brushless Direct Current (BLDC) rotary compressor with premium moving parts, Samsung ducted system delivers efficient and reliable performance. |
3-way service access for easy maintenance |
| Most ducted air conditioners are installed in a variety of locations, so they need to be accessed in different ways for maintenance. The Samsung DUCT S2 Air Conditioner is designed to be accessed from three directions – top, side and bottom – using an easy to remove Slide Fit cover. As a result, it’s much easier to maintain wherever it’s installed. |
Specifications
| Indoor Air Flow (I/s) Turbo/High/Medium/Low | 1200 / 1016 / 850 |
| Power Supply (V/Hz) | 380-415V, 50Hz |
| Weight - Indoor (kg) | 82.5 |
| Capacity Range - Cool (kW) | 6.2-22.5 |
| Capacity Range - Heat (kW) | 5.0-25.0 |
| EER/COP (Cool/Heat) | 3.30/3.70 |
| Indoor Dimension (W x D x H) [mm] | 1,350 x 910 x 450 |
| Outdoor Dimension (W x D x H) [mm] | 880 x 765 x 1,695 |
| Supply Air Opening (W x H) [mm] | 1284 x 360 |
| Return Air Opening (W x H) [mm] | 1284 x 360 |
| Sound Pressure Level (dB/A) | 57 / 59 |
| Sound Power Level - Outdoor (dB/A) | - |
| Refrigerant Type | R410A |
