Description

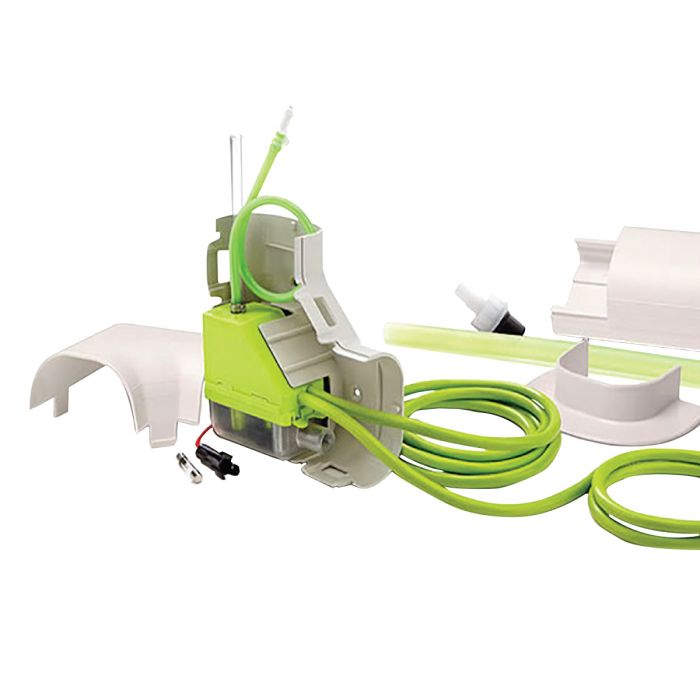

The patented Lime System is a unique one-piece elbow pump, mounted within a dedicated trunking system. Its compact design allows easy install & maintenance.
Features
- Univolt
- Left or right install
- Trunking system options
- Easy access for servicing
Suitability
- Up to 4.5ton / 54,000Btu/h
- Ductless mini split systems
- Perfect for commercial use in offices and restaurants
Technical

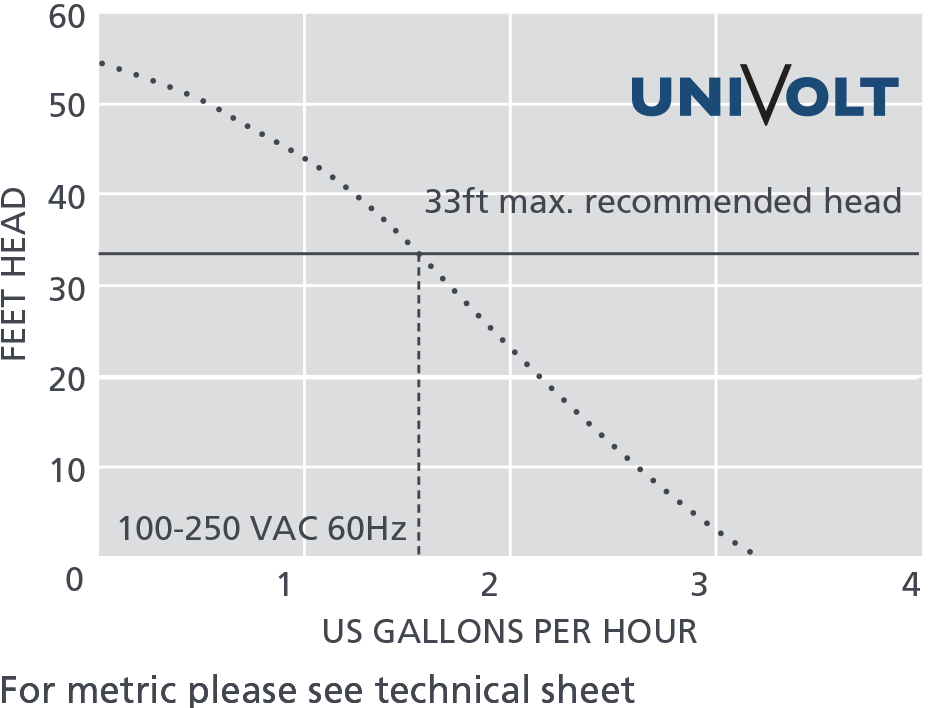

| Max. rec. head | 33ft / 10m |
Max. suction lift | Max. flow 12L/h |
| dB(A) | 27 | Power supply | 100-250 VAC, 0.16A, 16W, 50/60Hz |
| Rated | Non continuous |
Class | II appliance |
| Max. unit output | 4.5ton / 49,500Btu/h | Max. water temp | 40°C / 104°F |
| Discharge tube | 1/4" / 6mm ID |
IP Protection | IP24 |
| Safety switch | 3.0A Normally closed |
Thermal protection | ✓ |
| Fully potted | ✓ | Self priming | ✓ |
