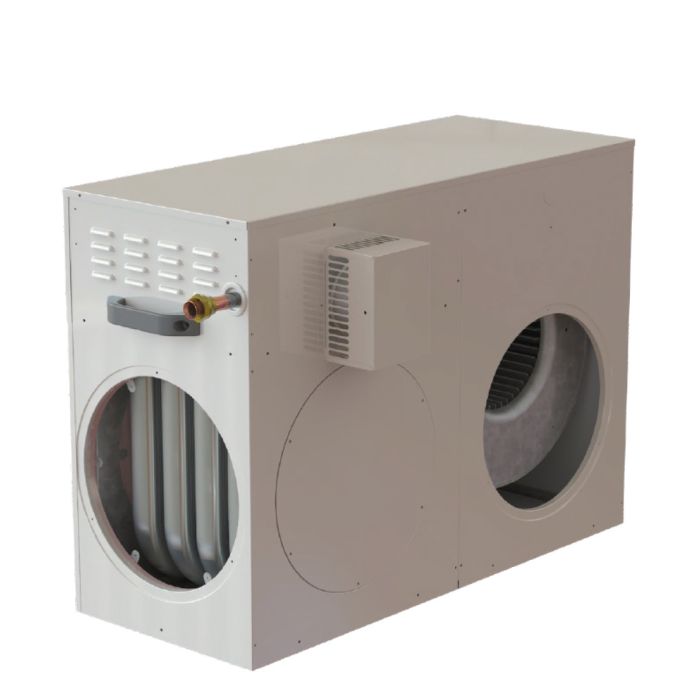

5 Star 15.0kW Bonaire MB Series Ducted Gas Heater

HGD5630020

5 star energy rated 15.0kW Bonaire MB5 ducted gas heater. The Bonaire MB5 is a super quiet, compact and fully insulated unit.



You may also need

RAG-H Grille Kits - Includes Return Air Box
45 Degree Gas Heating Bend 125mm
SKU: 444375
90 Degree Gas Heating Bend 100mm
SKU: 444370
45 Degree Gas Heating Bend 100mm
SKU: 444369
90 Degree Gas Heating Bend 125mm
SKU: 444376
Gas Heating Flue 150mm ⌀
SKU: 444654
Gas Heating Flue 100mm ⌀
SKU: 444365
Gas Cowl 125mm
SKU: 444372

Description

Bonaire MB5

Compact with 5 star efficiency

The secret to the MB5’s five star efficiency is its multi tube heat exchanger combined with a modulating gas valve which minimises gas usage, modulating combustion fan and modulating room air fan.

The advanced technology of gas valve modulation can match the load requirements of your home reducing its heating capacity as low as 30%*. This not only reduces gas consumption but also reduces electricity usage of the fan motor.

The MB5 series also offers the choice of Navigator Wall Mounted Controller or Navigator Radio Frequency (RF) Remote Controller. You can also operate your MB5 heater with the optional My Climate® by Bonaire control.

Key Features

  • 5-star energy efficiency rating
  • Non condensing eliminating the need for a  condensate drain
  • Modulating gas valve automatically adjusts gas rate as the home approaches set temperature
  • Modulating combustion fan for higher efficiency
  • Auto adjusting variable speed room air fan further enhancing the benefit of modulation and energy savings
  • Super quiet operation with fully insulated unit cabin
  • Integrated four zone control standard, heat only the rooms you need when you need them**
  • Compatible with Bonaire Optima Dual Cycle refrigerated air conditioning
  • Universal internal/external unit
  • Selected models available in ULPG
  • 5-year parts and labour warranty with 10 year parts warranty on the burner.
  • 7-year warranty option

Specifications

Gas Type Natural
Heat output kW/Hr (nominal) 15
AirFlow @100pa 600
MegaJoules 60
Star Rating 5.0
Outlets 5 to 9
Length (mm) 845
Width (mm) 350
Height (mm) 618
Weight (kg) 47
Duct Connections Supply & Return 300
